A developer's guide to the Open Graph protocol

12 Feb 2019 • 7 min read

I recently asked myself the question "how do link previews in iMessage work, and why doesn't my site have a preview?". I discovered that iMessage link previews, Twitter cards, Facebook link previews, and other social link previews revolve around one standard: the Open Graph protocol.

What's the Open Graph protocol?

It says on the Open Graph protocol spec that

the Open Graph protocol enables any web page to become a rich object in a social graph.

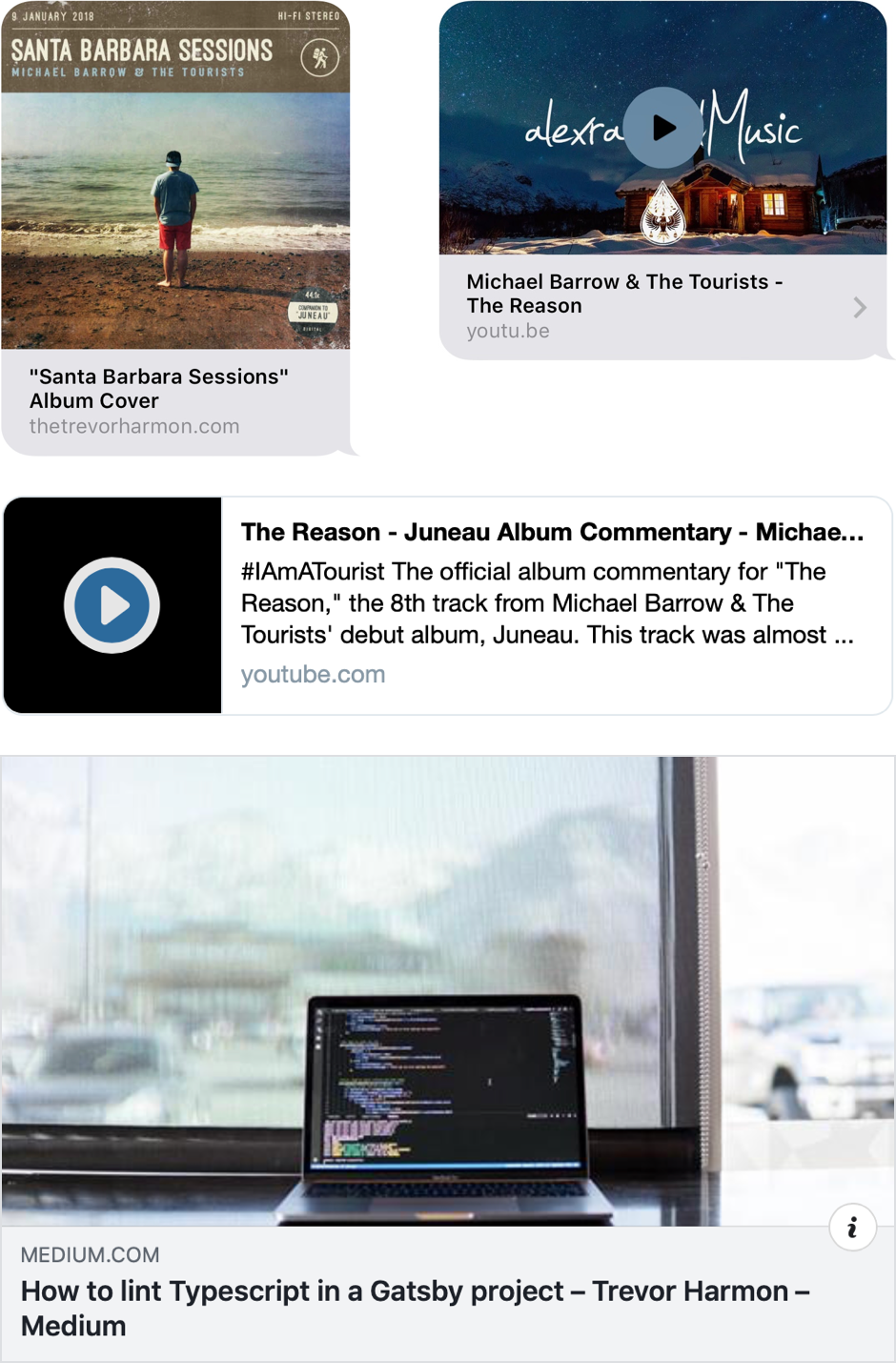

A "rich object" is a rich preview of the content of a link. You see these all over the place–here are just a few examples:

OpenGraph Guide Article: Open Graph Previews with Facebook

Without this protocol, social sites don't have a clear way to understand what content is relevant for a link preview, and link previews are dull and uninteresting. The Open Graph protocol provides a standard way for you as a developer to do a small amount of effort that results in rich, engaging link previews.

How do I use it?

You use the Open Graph protocol by adding specific types of meta tags in the head of your page. Much like standard meta information (title, description, etc), this allows web crawlers to quickly find out information about your page by only crawling the head.

General usage

A basic Open Graph meta tag looks like this:

<meta property="og:title" content="The Trevor Harmon" />

The property attribute on the tag acts like a key and the content attribute acts like a value. Every Open Graph meta tag property name uses og: as the prefix (except for certain Twitter-specific properties–more on that later).

Note: most of the time (outside of Open Graph usage) a meta tag uses name instead of property as the identifying attribute. The difference is explained on this StackOverflow post but because the Open Graph protocol uses property, it seems like that's the preferred usage when working with Open-Graph-related meta information.

Basic metadata

There are four basic meta tags that you should include on every page:

  1. og:title: the title of the page. According to Apple's documentation, this shouldn't include identifying information about the site, but only information about the page itself.
  2. og:type: the type of content of the page. The type you will most likely choose is website, but there are also other types available if you need something more specific.
  3. og:image: the image that will display on a link preview. This should be an image that is representative of the page's content. It's also helpful to have an image representing the site associated with the link (like a favicon) as a fallback.
  4. og:url: the canonical URL of the page. It needs to be an absolute url.

As I implemented these four basic tags, I found out about a couple of gotchas:

  • I had problems with relative urls for og:image. I would recommend using an absolute url instead.
  • Use the resolved url for og:url. Some of the tools I used threw warnings about redirects in the url.

Optional metadata

In addition to those four basic tags, there are a few more to know about:

  • og:description: the Open-Graph-specific description. This lets you include a description catered to social media sharing, instead of using the default description set in typical metadata.
  • og:site_name: the name of the website ("Facebook", "Reddit", etc).
  • og:locale: the locale of the website content. This tag defaults to en_US–change it if your content isn't US centric.

There are more optional tags you can use, but these are the most important to know about (for most cases).

Twitter specific metadata

Twitter has created a few of its own meta tags that affect Twitter cards (which are generated when you share a link on Twitter). Twitter first looks at typical Open Graph tag (like og:title), and then looks for any Twitter-specific tags. Here are the Twitter-specific tags you need to know about:

  • twitter:image: like og:image, but for Twitter. Twitter will automatically pull from og:image if it doesn't find twitter:image.
  • twitter:description and twitter:title: same as twitter:image.
  • twitter:site: the Twitter handle of the website. If the link was to a page on the New York Times, this would be the twitter handle of the New York Times (@nytimes).
  • twitter:creator: the Twitter handle of the content creator. If the link was to a page on the New York Times, this would be the handle of the author of the article.
  • twitter:card: the type of card displayed on Twitter. If og:type, og:title, and og:description exist on the page, Twitter defaults to using summary for the card type.

If you need more documentation on what Twitter tags exist, you can find a full list in the documentation on their website.

Putting it all together

As an example, the open graph implementation for my previous article looks like this:

<head>
  <!-- Basic -->
  <meta property="og:title" content="What I Learned from a Failed Startup" />
  <meta
    property="og:description"
    content="Four lessons I learned from working as an engineer for a startup that ran out of cash and went bankrupt."
  />
  <meta
    property="og:url"
    content="https://thetrevorharmon.com/blog/what-I-learned-from-a-failed-startup/"
  />
  <meta property="og:image" content="https://thetrevorharmon.com/favicon.png" />

  <!-- Additional -->
  <meta property="og:type" content="website" />
  <meta property="og:site_name" content="The Trevor Harmon" />

  <!-- Twitter -->
  <meta property="twitter:card" content="summary" />
  <meta name="twitter:site" content="@thetrevorharmon" />
  <meta name="twitter:creator" content="@thetrevorharmon" />
</head>

I've broken out the code according to each section of this article. I'm letting Twitter infer most of the information, and only providing the meta information for the card type and twitter handles. All of that code translates to this nice Twitter card:

OpenGraph Guide Article: Twitter Preview of Link

Next steps

Setting up Open Graph metadata isn't challenging, but it makes a big difference for the shareability of your website. Here are some of the tools I used and documentation I read in order to get Open Graph working on my own site.

Tools

  • Twitter's Card Validator: This was the most useful tool I used to test out my tags because it followed redirects, so I could use this with ngrok and test using my local development server. Unfortunately, it's a gated tool, but worth getting a twitter login if you need to do some testing.
  • OpenGraphCheck.com: I used this sparingly, but it can provide good, general information about a link. It also follows ngrok tunnels.
  • Facebook's Open Graph debugger: Facebook invented the Open Graph protocol, and their tool can give you detailed info about the link you have it debug.

Reading

  • Apple documentation: Apple chooses to consume Open Graph information within iMessage previews, but they provide a handful of specific tips for proper formatting and usage. I'd recommend becoming familiar with the best practices they list here.
  • Open Graph protocol documentation: for a deeper dive into what the protocol looks like beyond basic usage, definitely read the documenation.
  • Twitter cards documentation: If you want to make sure you are taking advantage of all of Twitter's card features, hop on over to their documentation.
  • StackOverflow Post: this was my starting point that got me from "iOS message previews" to "what is Open Graph?". You might find it useful.
  • I also read over these three articles as I sought to understand more about what Open Graph is and how it works
